"Miss Hill"

Main specs

Aerodynamic concept creating lift and reducing drag
High tilt
Carbon frame + 3D printed body kit (TPU recommended)
5in, 6in or 7in
Naca profile
Analog (micro cam) or HD (DJI/Caddx Vista) compatible
4in1 ESC recommended
Action cam compatible

The concept

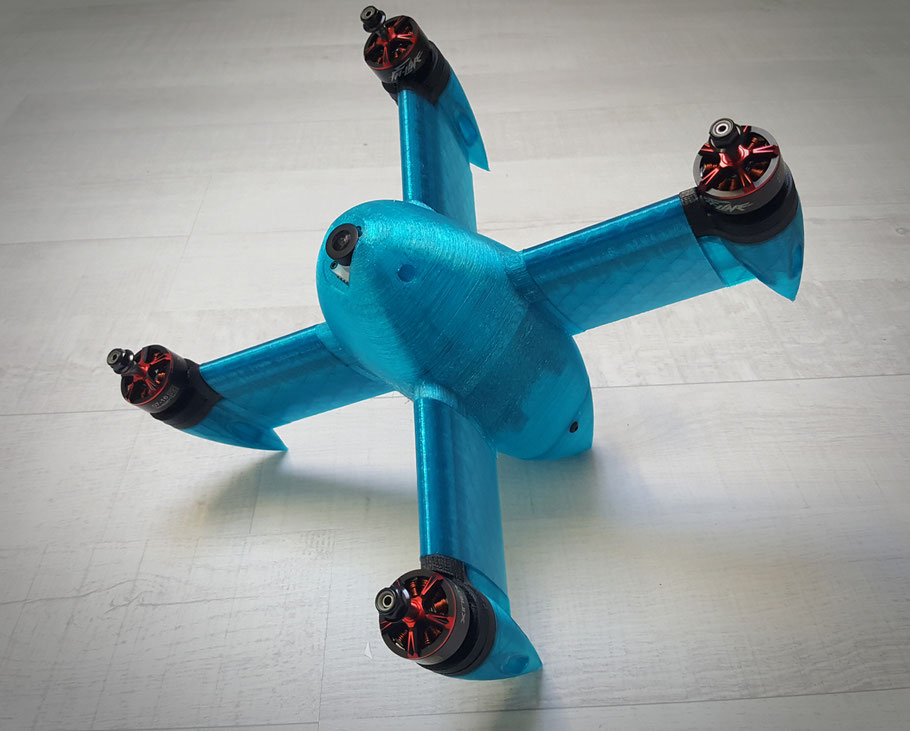

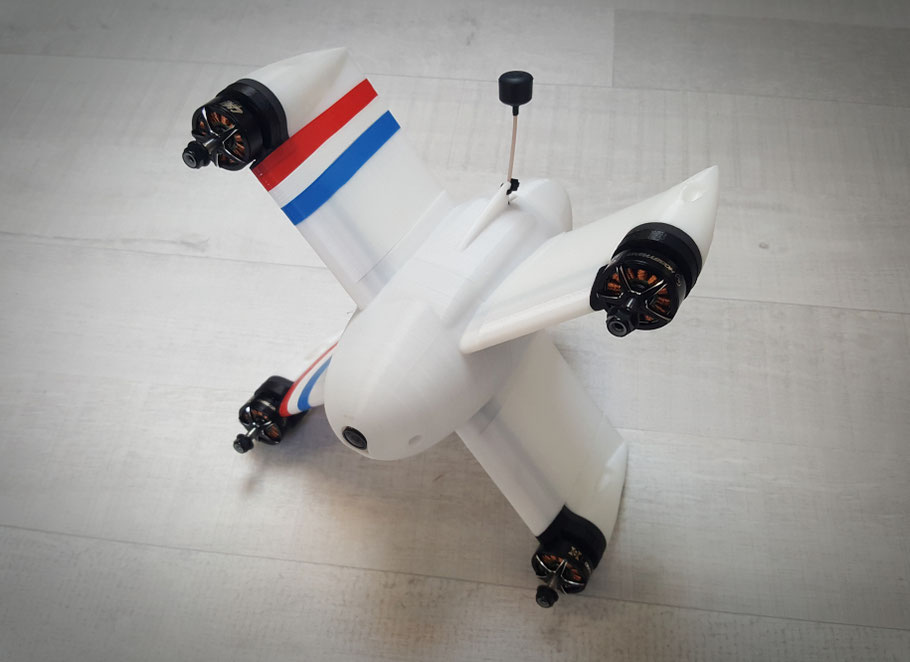

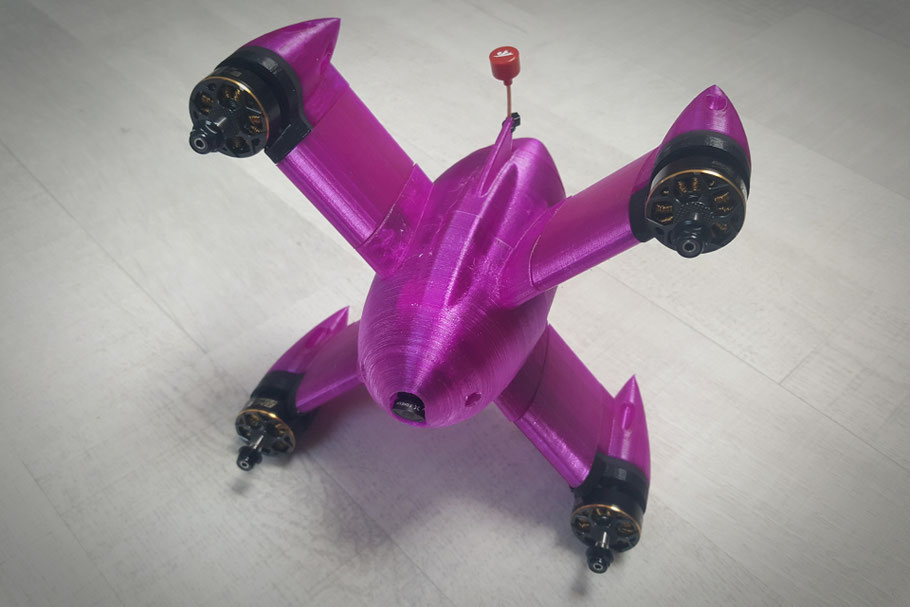

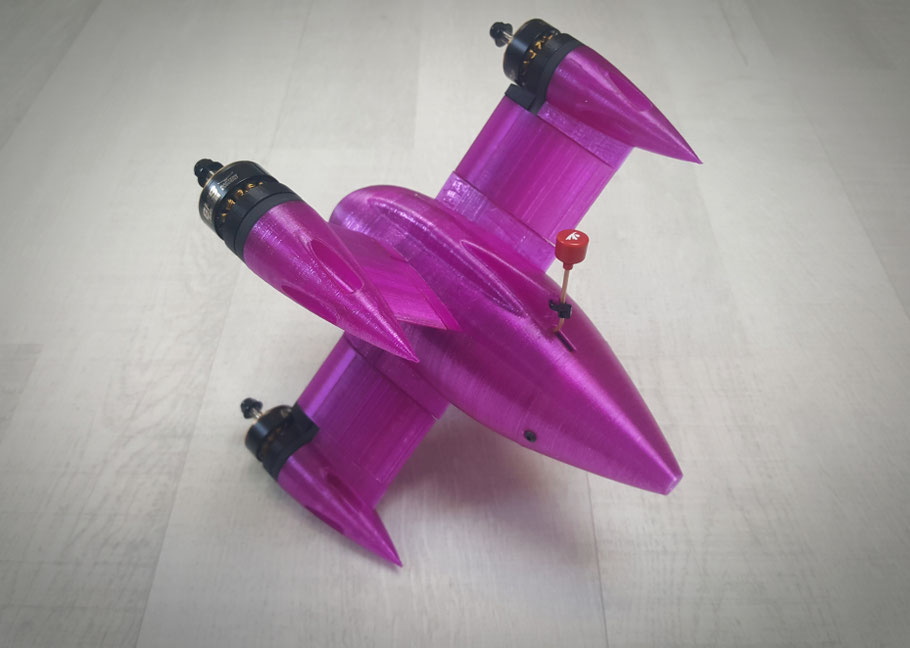

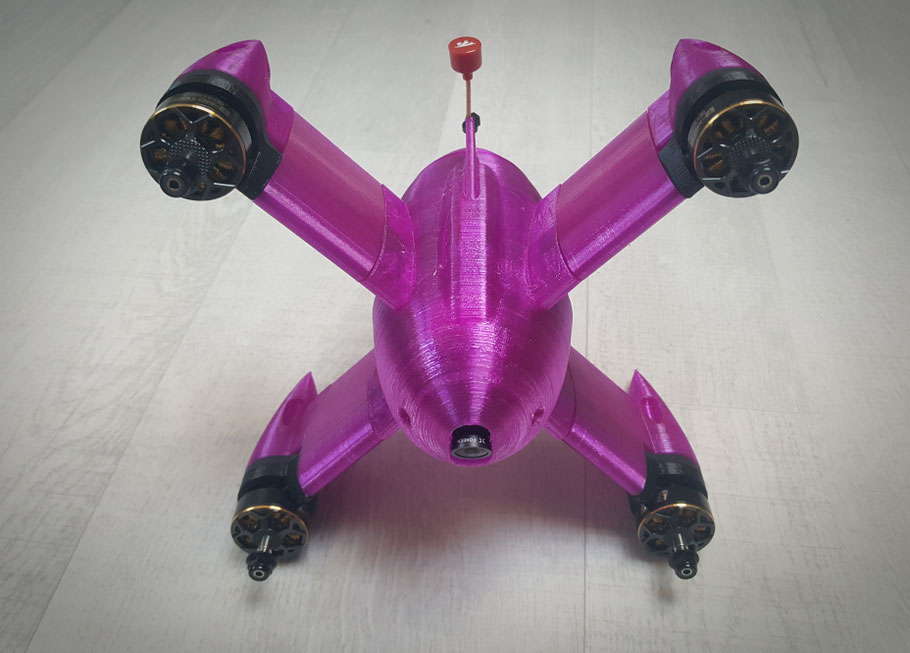

"Miss Hill" is an aerodynamic quadcopter concept which aims to improve flight performance.

This concept is based on 2 common principles in aeronautics: reducing drag and creating lift.

Thanks to that, this quadcopter can reach higher speeds and/or increase flight time, depending on the purpose.

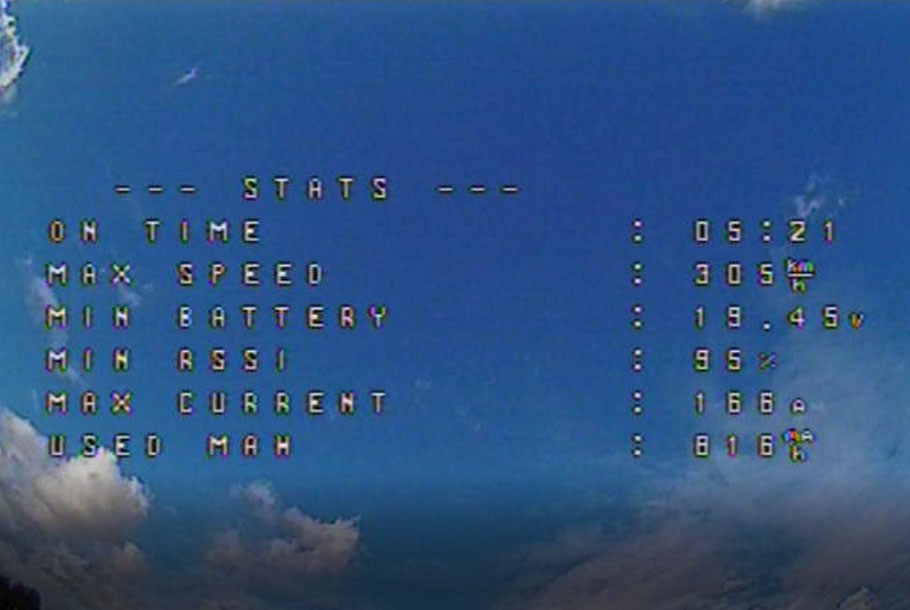

Above approximately 100 - 120 km/h (depending on the build and version), the lift created by the wings is sufficient to compensate the gravity forces. It is thus possible to fly with a pitch angle of nearly 90 degrees, roll and yaw are then inverted.

Inverted flight and knife-edge flights are also made possible through the symmetrical design of the wings.

Versions

The structure is composed of a carbon frame + a 3D printed body kit (TPU recommended)

The carbon frames exist in different versions, frame kits are available here:

5in, narrow body (aka SPEED version): https://armattanproductions.com/pages/kit_detail/2891
5in, wide body: https://armattanproductions.com/pages/kit_detail/2890
6in, wide body: https://armattanproductions.com/pages/kit_detail/2889
7in, wide body: https://armattanproductions.com/pages/kit_detail/2896

Different body kits are available here:

5in / Narrow body /short wing chord (aka SPEED version ): https://www.thingiverse.com/thing:4789823
5in, 6in or 7in / Wide body / short wing chord : https://www.thingiverse.com/thing:4789819
6in / Wide body / long wing chord : https://www.thingiverse.com/thing:4789692

For more information about the frame & body kits compatibility, the building, the printing, recommended components ... the "Miss Hill" User Manual is available here below for download.

Feel free to contact us on facebook or via the "contact" page
